ELK Stack with Laravel and AWS S3 Backup & Slack Alerts

A comprehensive Laravel application deployment setup integrating Docker, ELK Stack (Elasticsearch, Logstash, Kibana), with advanced logging, monitoring, and automated DevOps features. Check ELK-Stack-with-Laravel on github for more information.

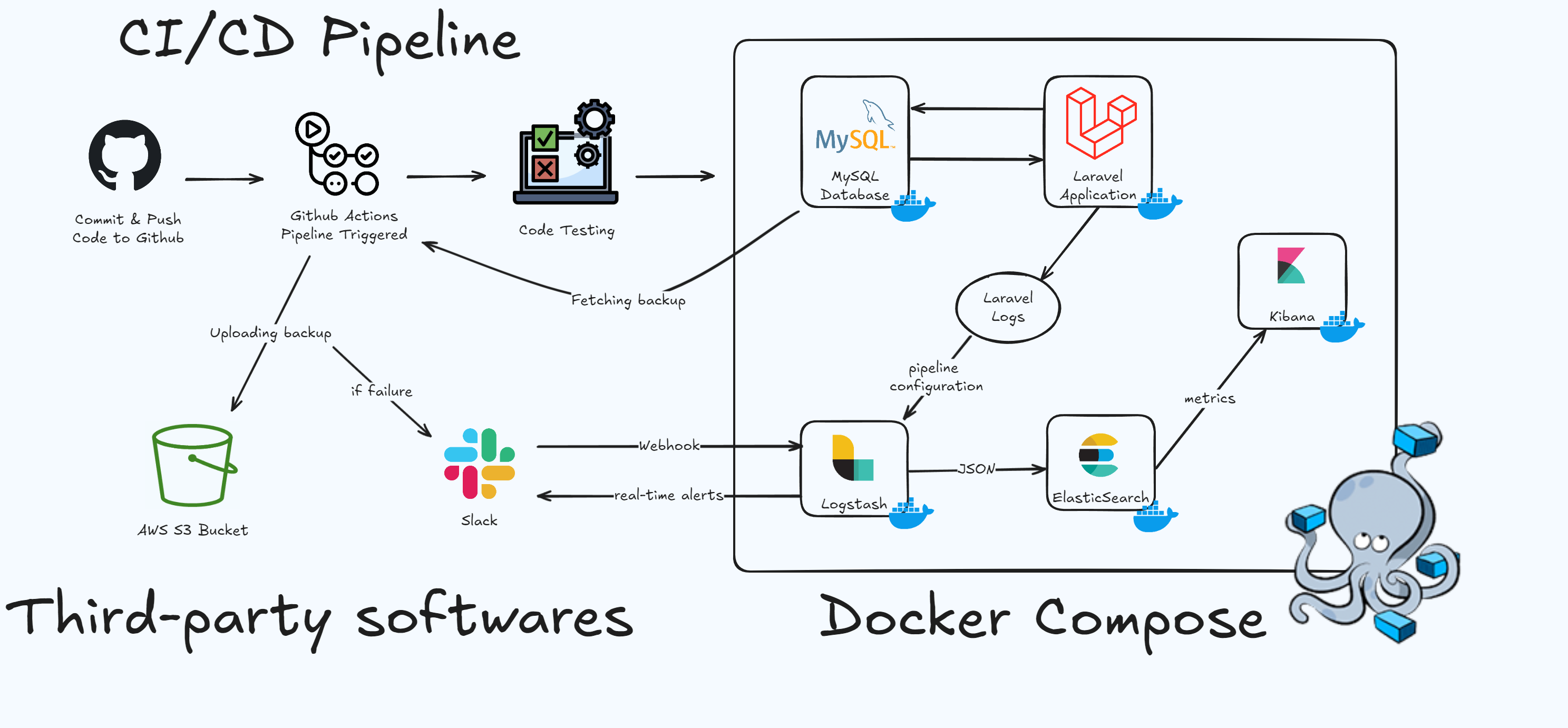

🖼️ Architecture Mockup

🚀 Features

• PHP 8.2 with Apache
• MySQL 8.0 Database
• ELK Stack integration for centralized logging
• Slack notifications for real-time alerts
• Automated CI/CD with GitHub Actions
• Automated database backups to AWS S3
• Custom Apache configuration
• Optimized PHP settings
• Automatic database migration on startup
• Wait-for-it script to ensure proper service startup order

📋 Prerequisites

• Git, Docker and Docker Compose installed
• AWS Account with S3 access
• Slack Workspace with API access (optional for slack alerts)

🏗️ Project Structure

├── .github/
│   └── workflows/
│       ├── backup.yml
│       └── ci-cd.yml
├── apache/
│   └── 000-default.conf
├── elasticsearch/
│   └── elasticsearch.yml
├── kibana/
│   └── kibana.yml
├── logstash/
│   │   └── config/
│   │       └── logstash.yml
│   │   └── pipeline/
│   │       └── laravel.conf
├── php/
│   └── php.ini
├── src/
│   └── [Laravel Project Files]
├── Dockerfile
├── docker-compose.yml
└── wait-for-it.sh

🔧 Configuration

Docker Environment Variables

Change the following environment variables in your docker-compose.yml file:

# Laravel & MySQL
DB_CONNECTION=mysql
DB_HOST=mysql
DB_PORT=3306
DB_DATABASE=laravel_db
DB_USERNAME=root
DB_PASSWORD=root_password

GitHub Secrets Configuration

Sensitive data such as AWS credentials and Slack webhook URLs should be stored securely as GitHub Secrets. To configure these:

1. Navigate to your GitHub repository and go to Settings → Secrets and variables → Actions.

2. Add the following secrets:

Secret Name	Description
DB_HOST	The host address of your database server.
DB_PORT	The port of your database server (e.g., 3306 for MySQL).
DB_DATABASE	The name of the database to back up.
DB_USERNAME	The username for the database.
DB_PASSWORD	The password for the database.
AWS_BUCKET	The name of your S3 bucket where backups will be stored.
AWS_ACCESS_KEY_ID	Your AWS Access Key ID.
AWS_SECRET_ACCESS_KEY	Your AWS Secret Access Key.
AWS_DEFAULT_REGION	Your AWS region (e.g., us-east-1).
SLACK_WEBHOOK_URL	The Slack Webhook URL for sending notifications.

Example Workflow Reference

Secrets are referenced directly in the GitHub Actions workflow like so:

env:
  AWS_ACCESS_KEY_ID: $
  AWS_SECRET_ACCESS_KEY: $
  AWS_DEFAULT_REGION: $
  AWS_BUCKET: $
  SLACK_WEBHOOK_URL: $

🚀 Getting Started

Clone repository:

git clone https://github.com/anas1412/ELK-Stack-with-Laravel.git
cd ELK-Stack-with-Laravel

Add a laravel project:

OPTION 1: Add your own project and renaume it to src/. Ensure the project is properly configured and accessible.

git clone [your-project-url]
mv [your-project-name] /src

OPTION 2: add your files if they already exist:

mv /path/to/your/laravel/project src/

OPTION 3: if you want to test it out on a new laravel project before moving forward:

composer create-project laravel/laravel src

N.B:

• Don’t forget to change DB_DATABASE etc .. in docker-compose.yml to match your new project’s database name.
• Don’t forget to make changes to Github Secrets to match your new project’s credentials.
• Don’t forget to make changes to Github Action workflows to match your project’s credentials.
• Don’t forget to make changes to php.ini & 000-default.conf to match your new project’s requirements.

Start the stack:

docker-compose up -d --build

Access your services:

• Laravel Application: http://localhost
• Kibana Dashboard: http://localhost:5601
• Elasticsearch: http://localhost:9200

📦 Container Details

ELK Stack Configuration

Elasticsearch

cluster.name: "elasticsearch"
network.host: localhost

Kibana

server.name: kibana
server.host: "0.0.0.0"
elasticsearch.hosts: ["http://elasticsearch:9200"]
monitoring.ui.container.elasticsearch.enabled: true

Logstash

xpack.monitoring.enabled: true
xpack.monitoring.elasticsearch.hosts: ["http://elasticsearch:9200"]
http.host: 0.0.0.0
path.logs: /var/log/logstash
log.level: debug

Logstash Pipeline Configuration

input {
  file {
    type => "laravel-logs"
    path => "/var/www/html/storage/logs/laravel.log"
    start_position => "beginning"
    sincedb_path => "/dev/null"
    codec => plain { charset => "UTF-8" }
  }
}

filter {
  grok {
    match => { "message" => "%{TIMESTAMP_ISO8601:timestamp} %{LOGLEVEL:log_level}  %{GREEDYDATA:message}" }
  }
  mutate {
    add_field => {
      "timestamp" => "%{timestamp}"
      "log_level" => "%{log_level}"
      "message" => "%{message}"
    }
  }
  json {
    source => "message"
    target => "json_message"
  }
}

output {
  elasticsearch {
    hosts => ["http://elasticsearch:9200"]
    index => "laravel-logs-%{+YYYY.MM.dd}"
    index_settings => {
      "number_of_replicas" => 0  # Disable replicas for this index
    }
  }
  # Optional: Output to stdout for debugging purposes
  stdout {
    codec => rubydebug
  }
  slack {
    url => "${SLACK_WEBHOOK_URL}"
    channel => "#alerts"
    username => "ELK Alert Bot"
    when => [
      "[log_level]" == "error"
    ]
  }
}

Automated Backups Configuration

GitHub Action Workflow (backup.yml)

name: Database Backup

on:
  schedule:
    - cron: "0 0 * * *" # Daily at midnight
  workflow_dispatch: # Allows manual triggering of the workflow

jobs:
  backup:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout Code
        uses: actions/checkout@v4

      - name: Backup Database
        run: |
          TIMESTAMP=$(date +%Y-%m-%d_%H-%M-%S)
          BACKUP_FILE="backup-$TIMESTAMP.sql"
          mysqldump -h $ \
                    -P $ \
                    -u $ \
                    -p$ \
                    $ > $BACKUP_FILE
          echo "Backup created: $BACKUP_FILE"

      - name: Upload to S3
        uses: aws-actions/aws-cli@v2
        with:
          args: s3 cp $BACKUP_FILE s3://$/backups/$BACKUP_FILE
        env:
          AWS_ACCESS_KEY_ID: $
          AWS_SECRET_ACCESS_KEY: $
          AWS_DEFAULT_REGION: $

      - name: Cleanup
        run: |
          rm -f $BACKUP_FILE
          echo "Local backup file deleted."

  notify-failure:
    runs-on: ubuntu-latest
    if: failure() # Only run this job if the backup job fails
    steps:
      - name: Notify on Failure via Slack Webhook
        run: |
          curl -X POST -H 'Content-type: application/json' \
          --data '{"text":"❌ *Database Backup Failed!*\n- Repository: '$'\n- Workflow: '$'\n- Job: '$'\n- Time: '$'"}' \
          $

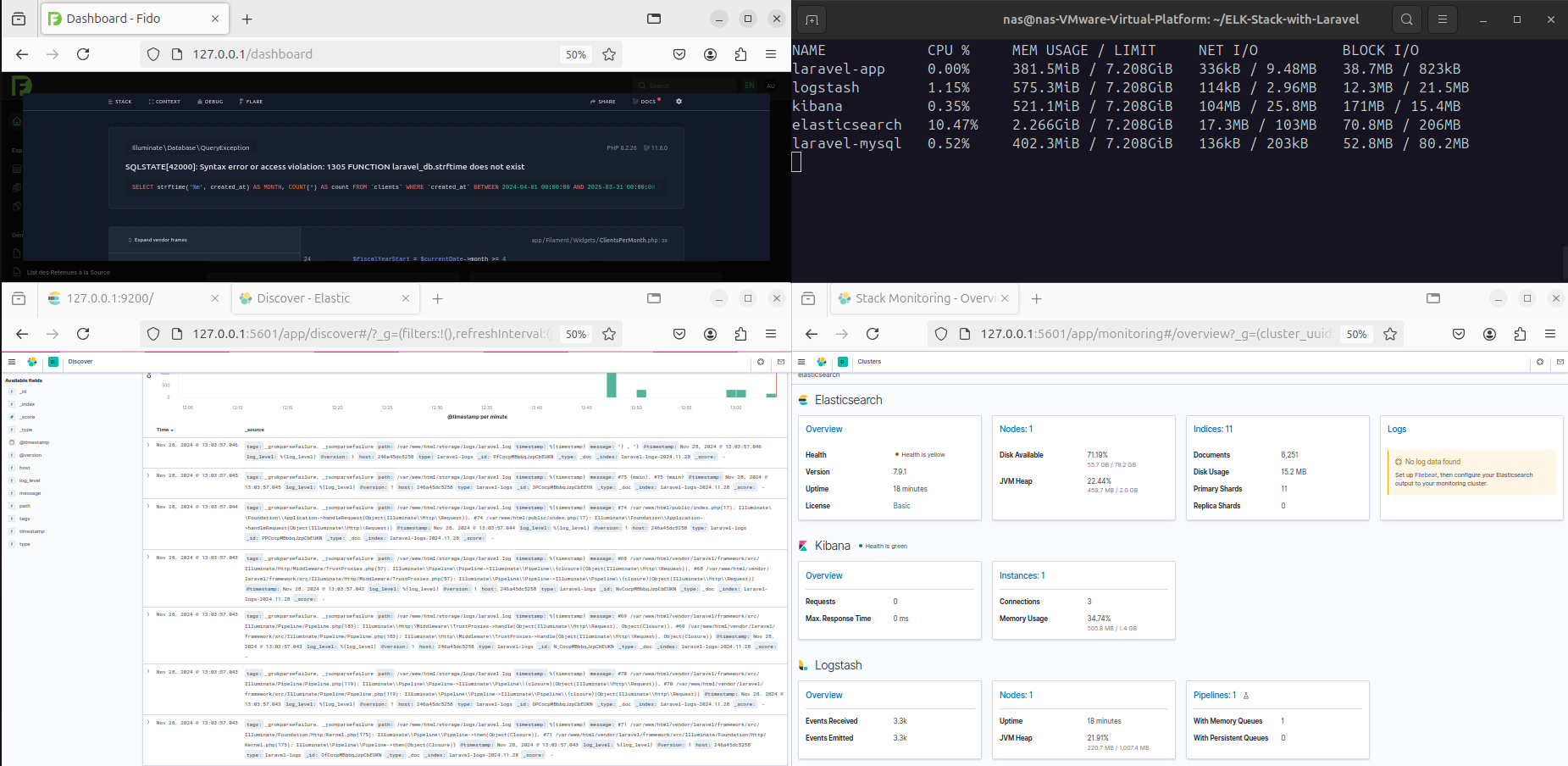

📊 Monitoring & Alerts

Kibana Dashboards

Log Monitoring Dashboard:

• Error Rate Overview
• Response Time Distribution
• HTTP Status Code Distribution
• Top Error Messages

Performance Dashboard:

• System Resource Usage
• Database Query Performance
• Cache Hit Rates
• API Endpoint Performance

Slack Alerts Configuration

Alerts are triggered for:

• Error logs
• High response time (>5s)
• Failed database backups
• System resource thresholds
• Security incidents

🔄 CI/CD Pipeline

GitHub Actions Workflow (ci-cd.yml)

Here you can configure your CI/CD pipeline to automate the deployment process. This includes building, testing, and deploying your Laravel application. You can customize the workflow to fit your specific needs.

name: Laravel CI/CD

on:
  push:
    branches: [main]

jobs:
  build-and-deploy:
    runs-on: ubuntu-latest
    steps:
      # Step 1: Checkout the code
      - name: Checkout Code
        uses: actions/checkout@v2

      # Step 2: Set up Docker and Docker Compose
      - name: Set up Docker Compose
        run: |
          sudo apt-get update
          sudo apt-get install -y docker-compose

      # Step 3: Install Composer
      - name: Install Composer
        run: |
          curl -sS https://getcomposer.org/installer | php
          sudo mv composer.phar /usr/local/bin/composer

      # Optional Step: Download a new Laravel project or change this with your project URL
      - name: Set up a new Laravel project
        run: composer create-project --prefer-dist laravel/laravel src --no-interaction

      # Step 4: Build Docker Images
      - name: Build Docker Images
        run: docker-compose build

      # Step 5: Run Laravel Tests
      - name: Run Tests
        run: docker-compose run app php artisan test

      # Step 6: Deploy the Application
      - name: Deploy
        if: success()
        run: |
          docker-compose up -d
          docker-compose exec --no-TTY app php artisan migrate --force --no-interaction
          echo "Application deployed successfully."
          docker-compose down

🛟 Troubleshooting

Common Issues

ELK Stack Connection Issues:

# Check Elasticsearch status
curl -XGET 'localhost:9200/_cluster/health?pretty'

# Check Logstash pipeline
docker logs elk-logstash

# Verify Kibana connection
docker logs elk-kibana

Backup Issues:

# Check AWS credentials
aws s3 ls s3://your-bucket

Log Collection Issues:

# Check Elasticsearch
curl -XGET 'localhost:9200/_cluster/health?pretty'

# Logstash logs
docker logs logstash

# Laravel application logs
docker-compose exec app tail -f /var/www/html/storage/logs/laravel.log

📈 Performance Optimization

Elasticsearch Optimization:

indices.memory.index_buffer_size: 30%
bootstrap.memory_lock: true

Logstash Performance:

pipeline.workers: 2
pipeline.batch.size: 125
pipeline.batch.delay: 50

📝 TODO List

Short-term Improvements

[] Improve the Slack notification configurations in Logstash

[] Implement comprehensive error handling.

[] Enhance Kibana dashboard visualizations

[] Create more detailed logging filters

Performance Optimization & Security Enhancements

[] Fine-tune Elasticsearch memory settings

[] Implement log rotation strategies

[] Add caching mechanisms

[] Enable Elasticsearch security features

[] Implement SSL/TLS for services

Monitoring & Observability

[] Integrate application performance monitoring (APM)

[] Create custom Grafana dashboards

[] Set up more advanced alerting rules

DevOps & Automation

[] Develop rollback strategies

[] Create staging environment configurations

[] Automate dependency updates

[] Implement infrastructure-as-code (IaC)

📄 License

This project is licensed under the MIT License. See the LICENSE file for more information.

🤝 Contributing

Contributions are welcome! Please feel free to open issues or pull requests to help improve this project.
